Carton Packer
SFA-2125-L |
Description：

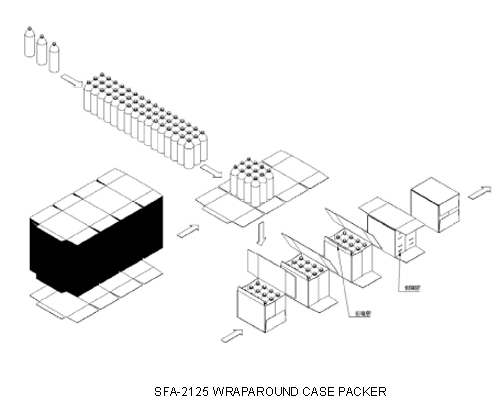

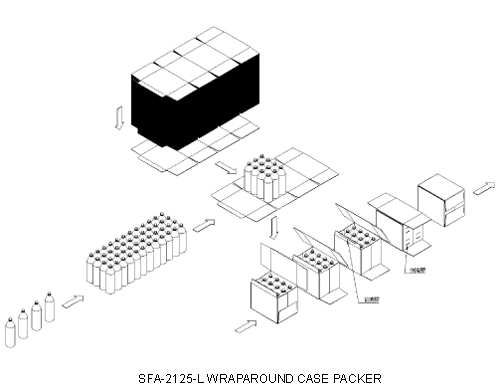

Wrap Around Packing
Machine
Features：
●
Man-machine interface screen control
● Automatic error message display
provides convenient shooting trouble.
● Applicable for wrapping various
products, such as Tin plate can, PVC bottle,
PET bottle and Glass bottle.
● Fully wraparound carton packing and
tray packing operation.
● Parameters can be set and modified
on the screen.
● Scale provided for machine
adjustment permits recording and convenience
for adjustment.
● Indexing transmission system
eliminates inaccurate packing problem.
● Glue spraying is calculated by
encoder, ensuring consistent glue spraying
length on each carton and permits adjustment and memorizing at any time.
● Glue spraying is calculated by
encoder, ensuring consistent glue spraying
length on each carton and permits adjustment and memorizing at any time.
● Fast set up for various sizes.
● All movable parts are provided with
grease nozzle for lubrication. Hard-to-
reach bearings located at the machine bottom are centralized lubrication at
outside through oil tubes.
● Applicable Products: Tin plate can,
PE bottle, PP bottle, PET bottle, Glass
bottle and Aluminum foil box. |
|
|
|
SPECIFICATION |
|
Model |
SFA-2125-L |
|
Power Source |
220V-240V / 50HZ-60HZ |
|
Power Capacity |
8
KW |
|
Air Pressurre |
5-6.0 kg/cm2 |
|
Air Flow Consumption |
1000L/min |
|

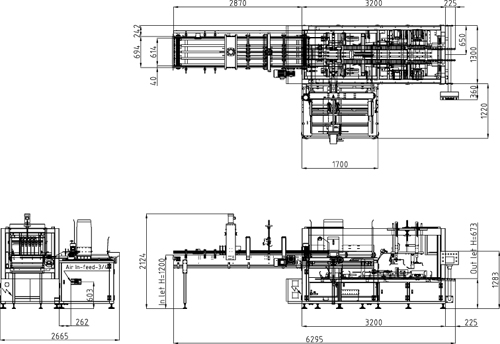

Machine Dimensions |
L6070mm X W2800mm X H2006mm |
|
Machine Weight |
2800kg |
|
Processing Capacity |
23-25cartons /min |
|
Operation Control |
English screen display system |
|
Packing Material |
Corrugated Paper |
|
Sticking Method |
Hot Glue |
|
|
|
