Packing / Carton Packer
/ SFA-5422 |
Back |
|
|
Carton Packer
SFA-5422 |
Description：
Low Speed 30-40 second / Layer.
Features：
●
Man-machine interface control panel both in English / Chinese version
provides automatic display for error message and position guide for
operation.
●

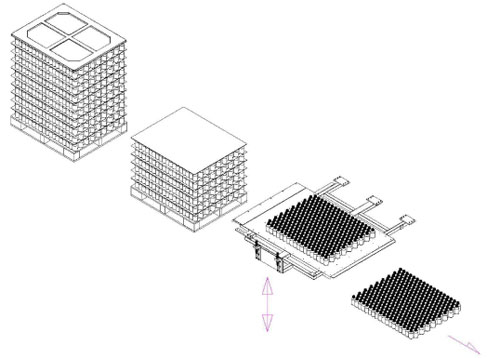

Automatic
paper take-out combined with automatic stacking to eliminate
troublesome take-out by manual operation. This also provides convenience
for moving by forklift.
●
Empty
bottle pallets are stacked automatically.
●
Empty
bottles pallets operate automatically with a frequency inverter,
assuring smooth motion without damaging on empty bottles.
●
Empty
bottle pallets are collected and stacked automatically and suitable for
various shapes of bottles and cans.
●
Low bed
construction allows for convenient maintenance.
●
Applicable Products: PE bottle, PP bottle, PET bottle and Tin plate bottle. |
|
|
|
SPECIFICATION |
|
Model |
SFA-5422 |
|
Power Source |
220V-440V / 50HZ-60HZ |
|
Power Capacity |
10 KW |
|
Air Pressurre |
5-6.0 kg/cm2 |
|
Air Flow Consumption |
1000L/min |
|

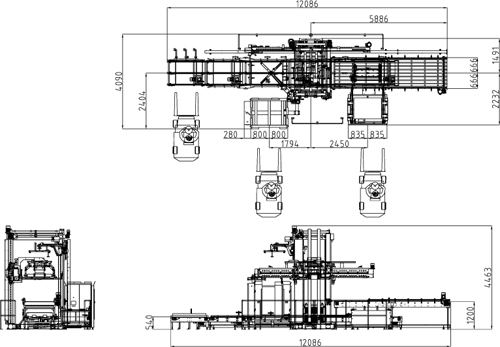

Machine Dimensions |
L12081mm X W8740mm X H4463mm |
|
Machine Weight |
4200kg |
|
Processing Capacity |
30-40 sec./Layer |
|
Operation Control |
English screen display system |
|
Suitable Processing Package |
Can, PE, PET, Glass and Bottle |
|
|
|
